Production set:
Building area: 60 m2
Construction time: up to 4 months
Attic: 35 m2
Combined kitchen and living room: 25 m2
Bedrooms: 2
Bathrooms & WC: 1 (4.84 m2)
Large floor to ceiling windows
2 skylights

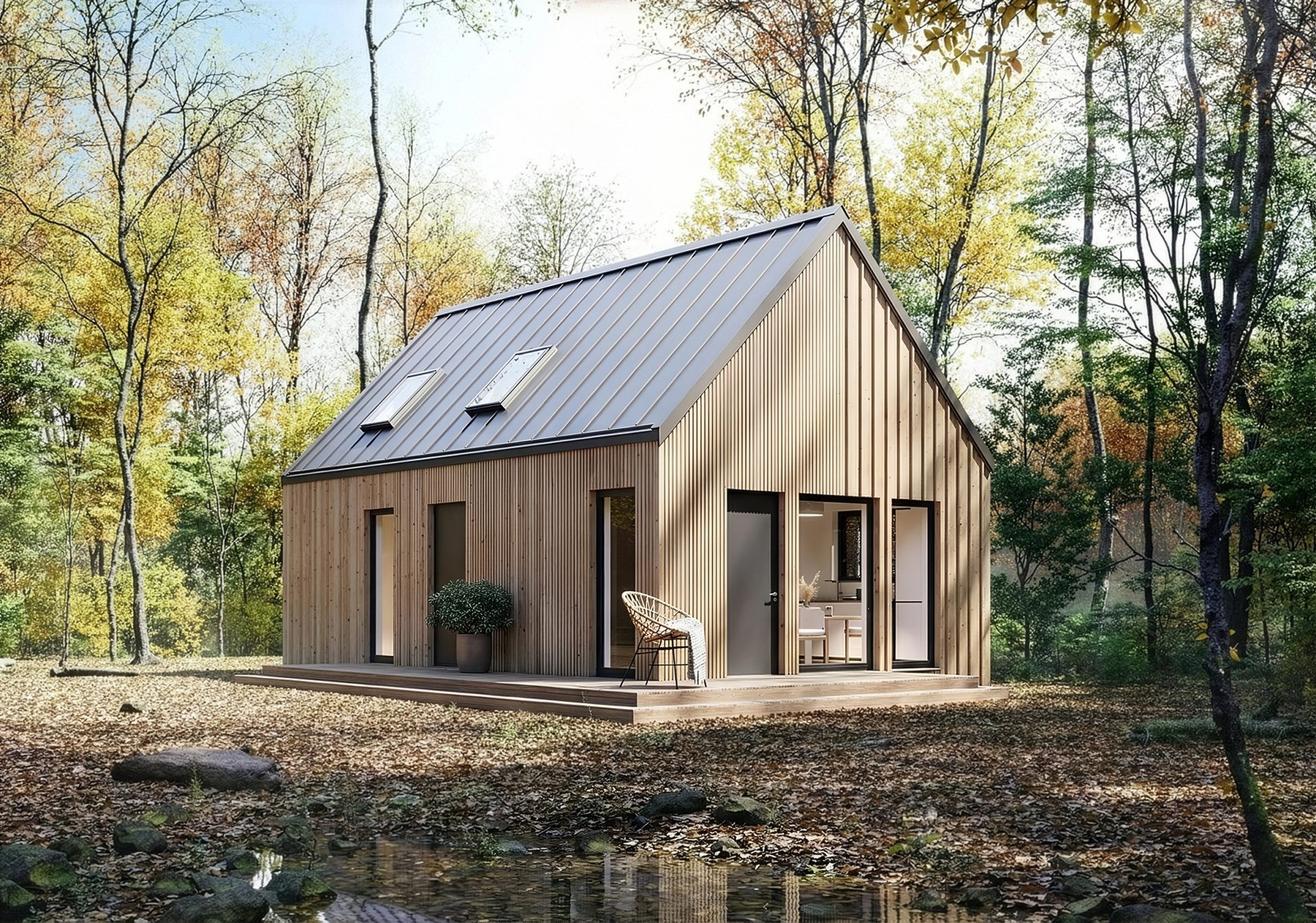

COMPACT HOME is a high-quality, gabled roof modular house designed to optimize every square meter of living space. This house is a step closer to the future you want. For an affordable price, you will get an energy-efficient wooden frame house that is suitable for year-round living or relaxation outside the city. Thanks to its vertical layout and high ceilings, the house can also be conveniently placed on small plots of land.
In addition, this building uses high-quality materials, including thermowood cladding boards, wood fiber windproof panels and wood fiber insulation, as well as aluminum windows and doors, which provide excellent thermal insulation. A quickly constructed home that combines modern architecture with sustainable solutions.
The spacious attic floor of the house is highlighted by two skylights, which provide additional natural lighting and promote openness. The practical layout of this floor offers opportunities to create a comfortable bedroom, study or even a creative space that will provide privacy and peace.
M 1:50
M 1:50
M 1:50
| Space Expansion | ||
|---|---|---|
| 1.1 | Hallway | 19.10 m² |
| 1.2 | Bedroom | 9.55 m² |
| 1.3 | Bedroom | 9.55 m² |
| 1.4 | Bedroom | 18.40 m² |
| 1.5 | Office | 3.04 m² |
| 1.6 | WC with shower | 6.23 m² |
| 1.7 | Technical room | 2.55 m² |
| 1.8 | WC with shower | 3.63 m² |
| 1.9 | Living room with kitchen | 40.52 m² |
| Total | 112.57 m² | |
| No. | Layer | Thickness, mm |
|---|---|---|
| 1 | Finishing (e.g., cladding boards or plasterboard) | 15 |
| 2 | Vapour barrier |
0.2 |
| 3 | Plywood | 15 |
| 4 | Roof frame beams |
245 |
| 5 | Wood fiber boards |
25 |
| 6 | Pressure plates |
50 |
| 7 | Roof lathing |
25 |
| 8 | Double standing seam | 0.5 |
| No. | Layer | Thickness, mm |
|---|---|---|
| 1 | Finishing (e.g., cladding boards or plasterboard) | 15 |
| 2 | Vapour barrier |
0.2 |
| 3 | Plywood | 15 |
| 4 | Wall frame beams |
195 |
| 5 | Wood fiber boards |
12 |
| 6 | Pressure plates |
25 |
| 7 | Horizontal lathing |
25 |
| 8 | External cladding board finish |
20-50 |
| No. | Layer | Thickness, mm |
|---|---|---|
| 1 | Finishing (e.g., cladding boards or plasterboard) | 12 |
| 2 | Vapour barrier | 0.2 |
| 3 | Roof supporting structure | 2x195 |
| 4 | Wood fiber boards | 25 |
| 5 | Pressure plates | 45 |
| 6 | Roof lathing | 25 |
| 7 | Rolling profile | 0.5 |
| Space Expansion | ||
|---|---|---|
| 1.1 | Living room, kitchen | 25.20 m² |
| 1.2 | Bedroom | 8.58 m² |
| 1.3 | Bedroom | 9.59 m² |
| 1.4 | Bathroom | 4.84 m² |
| 2.1 | Loft | 35.21 m² |
| Total | 83.42 m² | |
| No. | Layer | Thickness, mm |
|---|---|---|
| 1 | Finishing (e.g., cladding boards or plasterboard) | 12 |
| 2 | Plywood | 18 |
| 3 | Pressure plate / engineering communications / insulation | 45 |
| 4 | Vapour barrier | 0.2 |
| 5 | Wall frame beams | 195 |
| 6 | Wood fiber boards | 25 |
| 7 | Pressure plates | 25 |
| 8 | Horizontal lathing | 25 |
| 9 | External cladding board finish | 20-50 |
